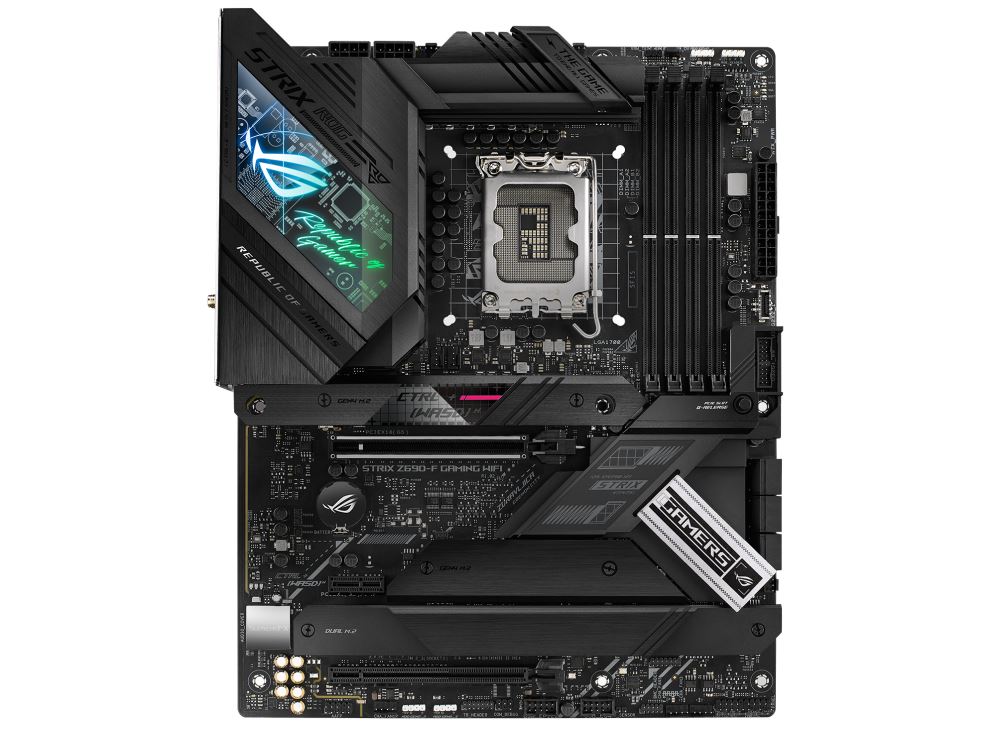

STRIX Z690-F GAMING (WI-FI), LGA 1700, Intel Z690, DDR5, Broj utora 4, 128 GB, Takt 4800 - 6400 MHz, PCIe 5.0 x16 1, PCIe x4 1, PCIe x1 1, SATA3 6, RAID 0,1,5,10, 8-kanalni audio, RJ45 1, WLAN 2, M.2 4, USB 3.2 8

Specifikacije:
Socket: LGA1700
CPU: Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Core i9 Intel Pentium
Chipset (N): Intel Z690
BUS[MHz]: 1000
Memorija: DDR5
Broj utora: 4
Max. memorije [GB]: 128 GBYTE
Takt memorije [MHz]: 3200 2133 2400 2666 2933 3333 3466 3600 3733 4000
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 1
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: 1
PCIe x1: 1
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 6
RAID: 0 1 5
Audio: 8-kanalni audio
Mreža: 1x 10/100/1000 Ethernet
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: n/a
D-sub: n/a
DVI: n/a
Display Port: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
USB 3.0: 0
S/PDIF Out: n/a
4-pin ATX 12V Power: n/a
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 5
CPU Fan Power: 2
Format ploče: ATX
WLAN connector: 2
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: 3
U.2: n/a
USB 3.1: 0
USB 3.1: 2
PCIe 4.0 x16: 0
USB 3.2: 8
